Create multiple rows v2.26.0


Creating rows with the Data+ Table usually requires a reload of the app. This can be a bit tedious if several rows are added in quick succession.
There are a few tricks to simplify this process for the user. In this example, we will use Data+ Flow.

Server

  • Create an API Key, that allows updates for the desired table

Table

  • We will not use the Create DB entry option of the table

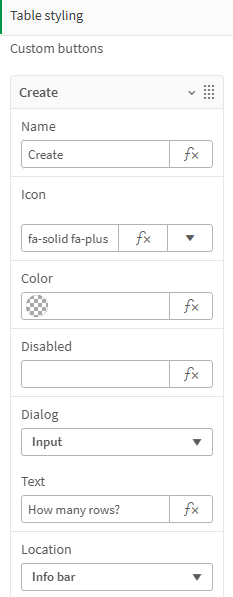

  • Add a custom button to start the process (Settings->General->Table Styling->Info bar->Custom buttons)

  • The Dialog option Input will allow the user to enter the desired rows

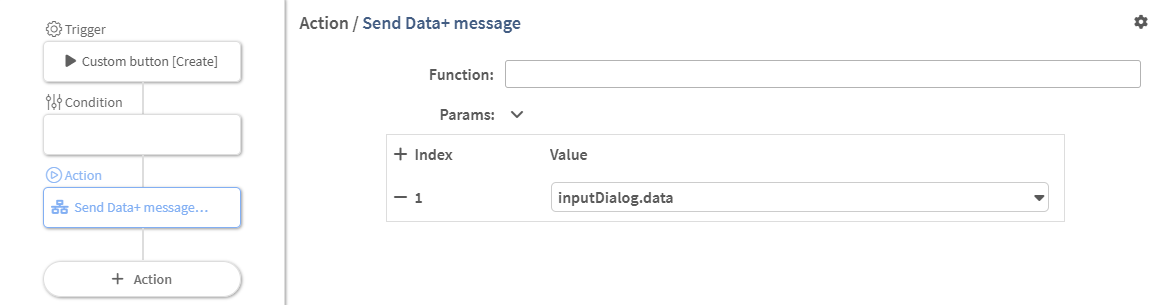

  • Create a rule with trigger Custom button and a Send Data+ message action, this allows us to communicate with the Flow extension
  • The actions parameters can be used to send the user input


  • Leave the Function value empty for now and close the rule editor

Flow

  • Add a Data+ Flow extension to the sheet

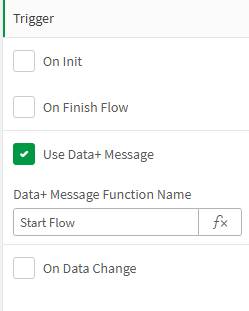

  • Change the trigger section by disabling On Init and instead enable Use Data+ Message


  • Open up the Flow editor (you can use the edit button inside the extension object while in edit mode)

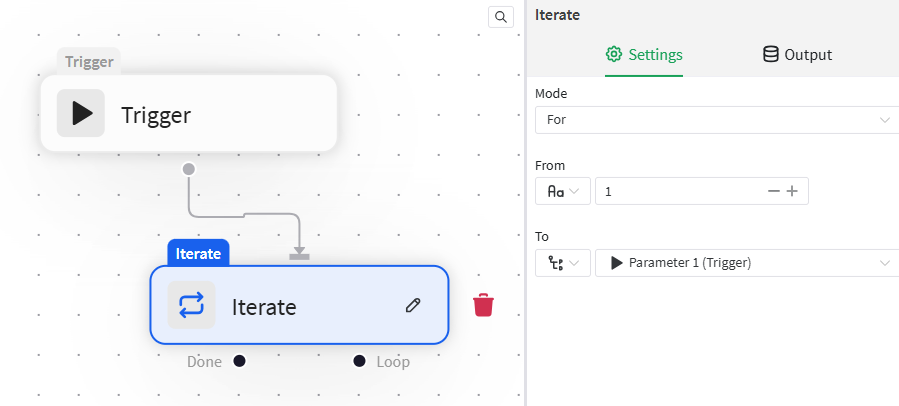

  • Add an Iterate block in For mode ranging from 1 to [stepData][Parameter 1(Trigger)]
    • The trigger parameters are the values that will be send with the Data+ message

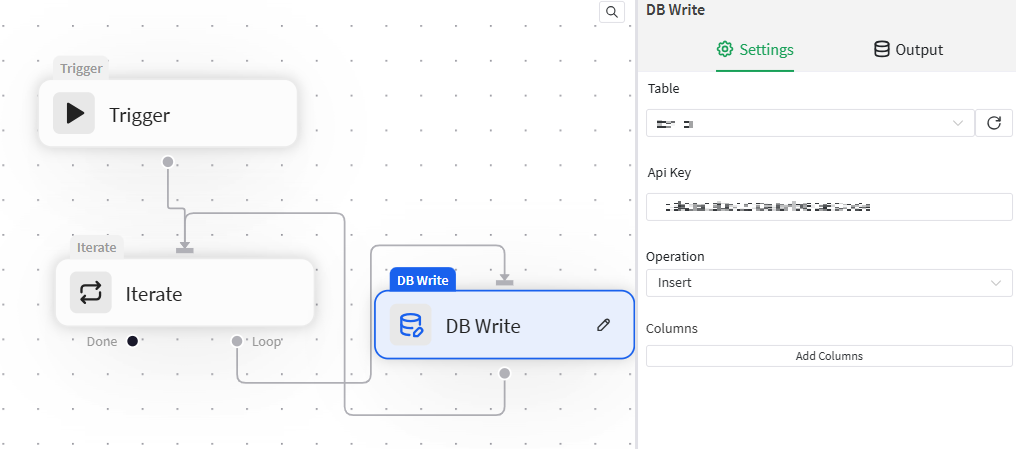

  • Add the DB Write block to the Loop part
    • Select your table and insert your API-Key
    • Other column values could be prefilled here as well

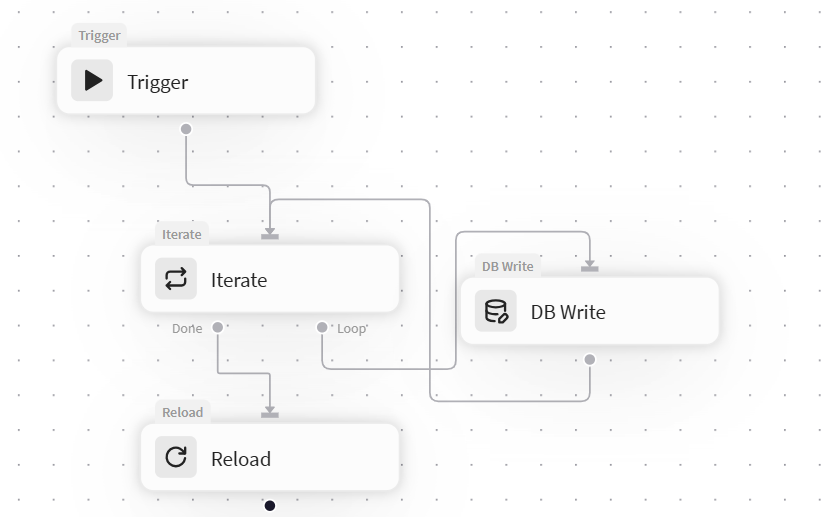

  • Finally add a Reload block to refresh the app and load the new rows from the Data+ database


Table

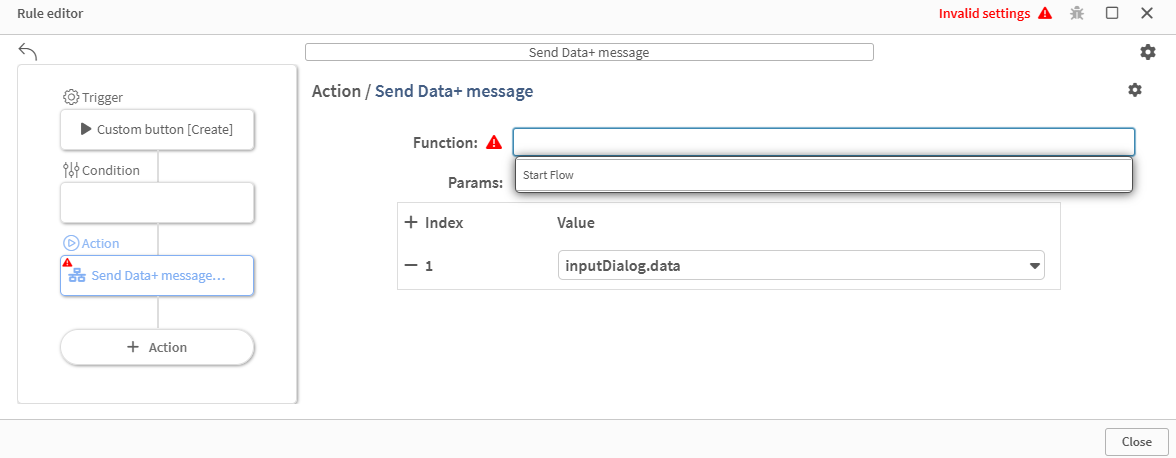

  • Back in the rule editor of the Table the function input should suggest the correct Data+ message function name

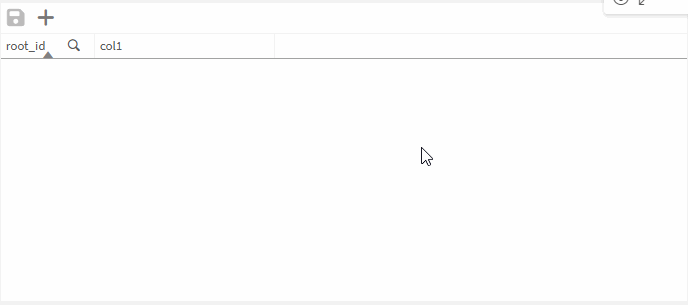

That is the basic setup, that allows creating multiple rows at once. Some further thoughts:

  • It is probably a good idea to validate the user input before execution (the rule conditions can be used for that)
  • Add some loading feedback for the user (e.g. Loading overlay rule action)
  • Change the background of the Flow extension so it not visible in view mode
  • We are using the auto generated id by the database, mapping the rows to another table is best done in a separate column
