Steps

Control

If

Based on the condition execute different steps.

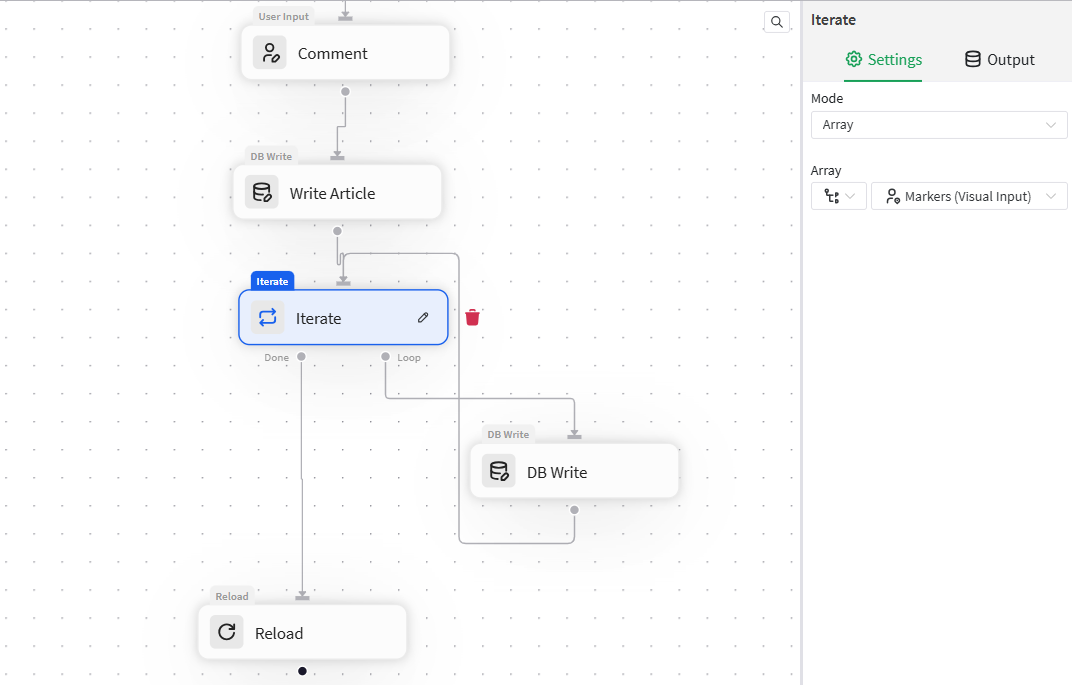

Iterate

This step either iterates through an array or increases a variable. The step has two options to attach next steps:

• Loop: These steps are run for each item / increase (This needs to be connected to the step again)
• Done: Once the loop is done continue here

Await

Wait for:

• AppReload
• Selection in a field
• Exactly one selection in a field

Data+ Message

Send a data+ Message to another Data+ object.

User

User Input

Let the user input Data. Can be either a text input or button.

User Choice

Choose from multiple options.

Button Group

Let the user choose from multiple buttons.

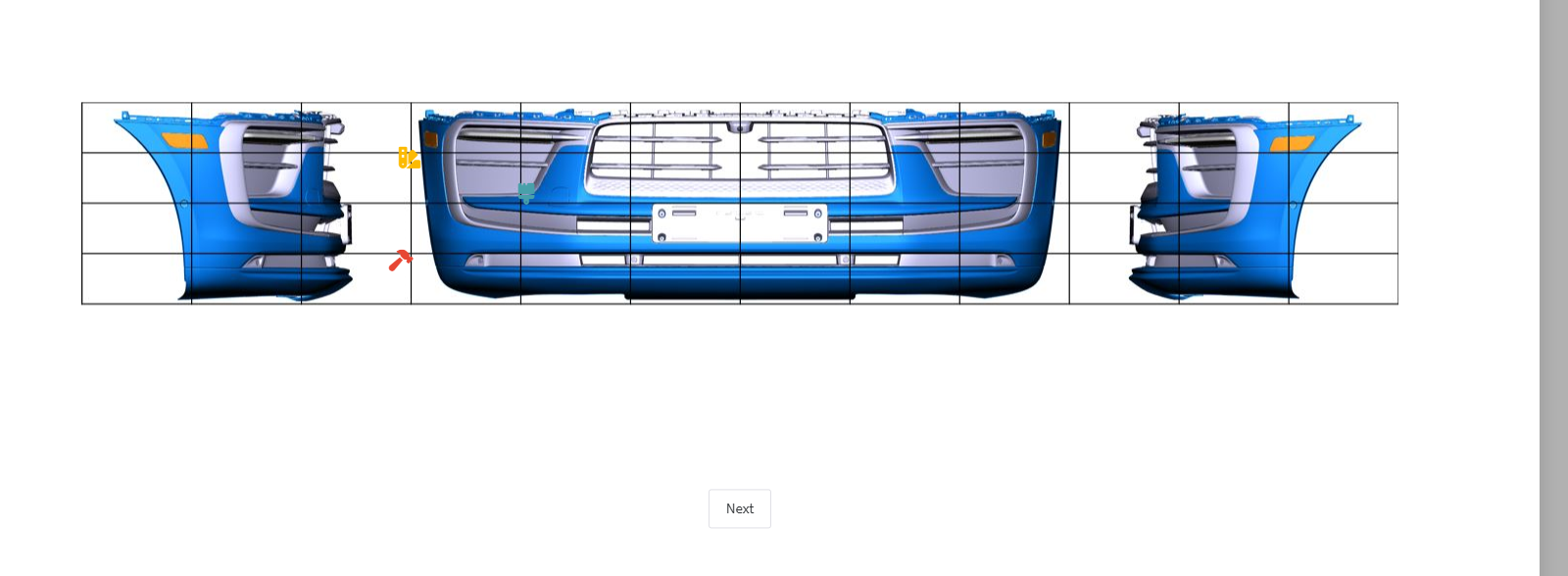

Visual Input

Allow the user to set markers on an image.

The output value is an array of markers

type Markers = {
    x: number;
    y: number;
    percX: number;
    percY: number;
    value: string;
}[]

Show Notification

Show a toast to the user with the configured message.

Scan

Scan any Qr or barcode and continue if one is found.


Take a photo and output it as a dataurl.

Signature

Sign in a field and output the signature as a dataurl.

Text Display

Like a User Input without any input elements. Often used for displaying text at the end of the flow.

Play Sound

Play a sound to the user.

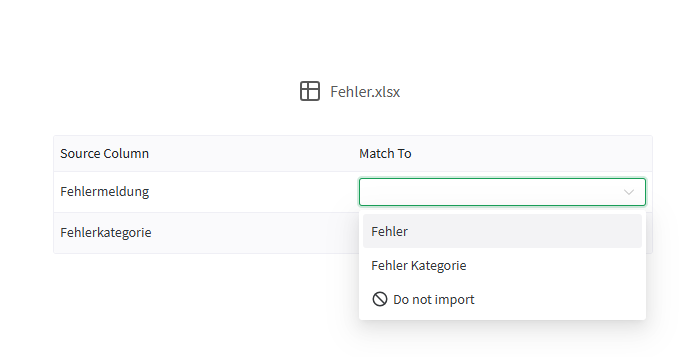

Import Data

Import data from excel, csv & more table formats. For excel the first sheet is used. The step shows an overview to map the imported data to keys in a json array.

Calculation

Calculate

Different operations can be performed on numbers, strings or dates. The result can be used in the next steps.

Code

Execute custom json code. The function does not need to be written again. A valid input would be:

return {
  "result": "Hello World"
}

The arguments can be passed to the function and can be accessed via the name.

Json

Parse or manipulate a json object.

Mapping Table

Define a mapping table to map values to other values.

String Builder

Create a string from multiple inputs. The inputs can be text, numbers or variables. Therefore place the value names in the input schema like {valueName}.

Qlik

Read Variable

Read a variable from the Qlik app.

Set Variable

Set a variable in the Qlik app to the string value.

Qlik Expression

Evaluate a Qlik expression and return the result. The Qlik Expression can be interpolated using the variables defined below.

Reload

Reload the qlik app.

Selection

Make a selection in a field.

Search Qlik Data

Search for a value in one field and return the result. You can define other fields to return as well.

Qlik Table

Retreive tabular data as json from Qlik. You can use formulas to define fields or expressions. Field names are automatically assigned, for expressions the key in the output json can be defined.

Internet

Open Link

Open a link in the user’s browser. Can be used to open data urls.

Db Read

Read data from the database. The result can be used in the next steps. Up to 10000 records can be read.

Db Write

Write a single entry to the database. The keys must be defined in the input schema.

Db Delete

Delete entries by id from the database

Db Bulk Write

Write multiple entries to the database. The keys must be defined in the input schema. You can choose for each field if it should be filled from the supplied array or if it is defined by one value for each entry.

Api Call

Make a call to an external API and return the result.

Run Automation

Run a qlik automation. The Body is the json posted to the automation.
